JEDEC Matrix Trays
From £4.00
- Black antistatic modified polysulfone
- Standard JEDEC dimensions 323mm x 136mm
- Temperature resistance up to 150°C
Note: More JEDEC matrix tray configurations available on request.

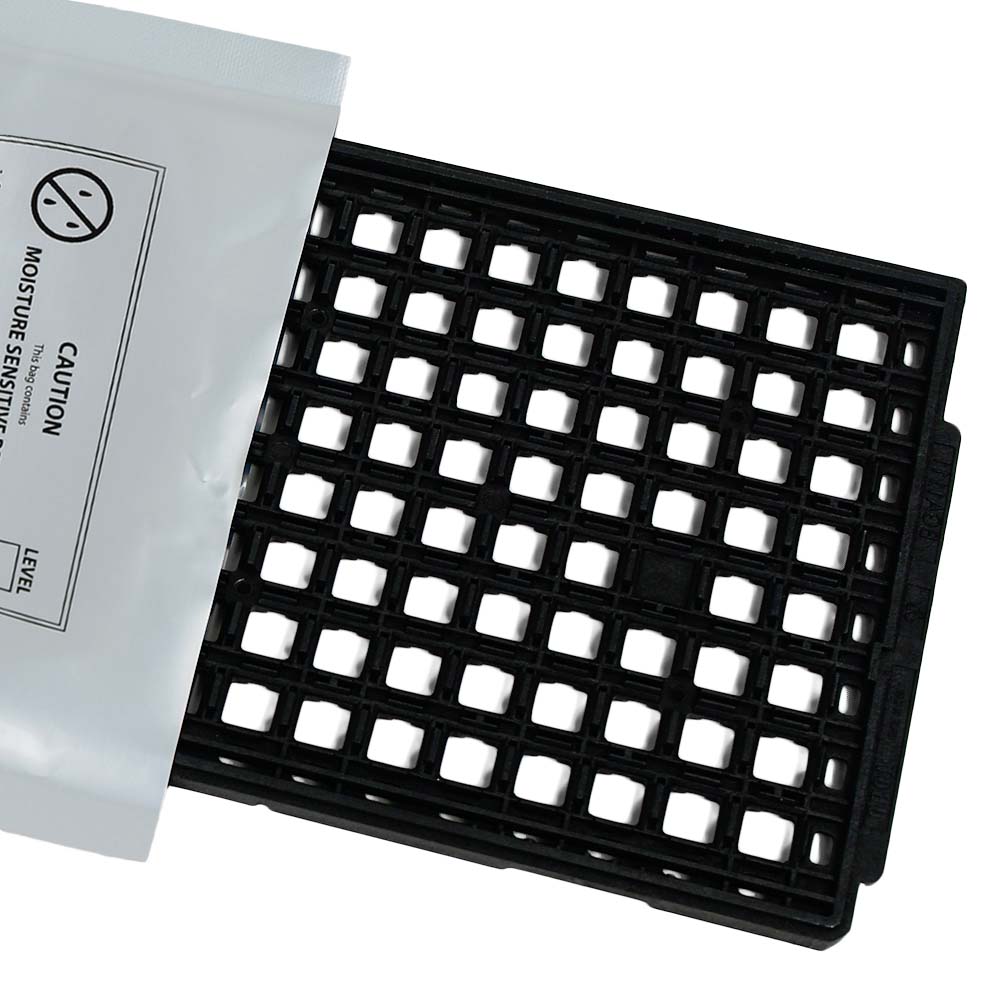

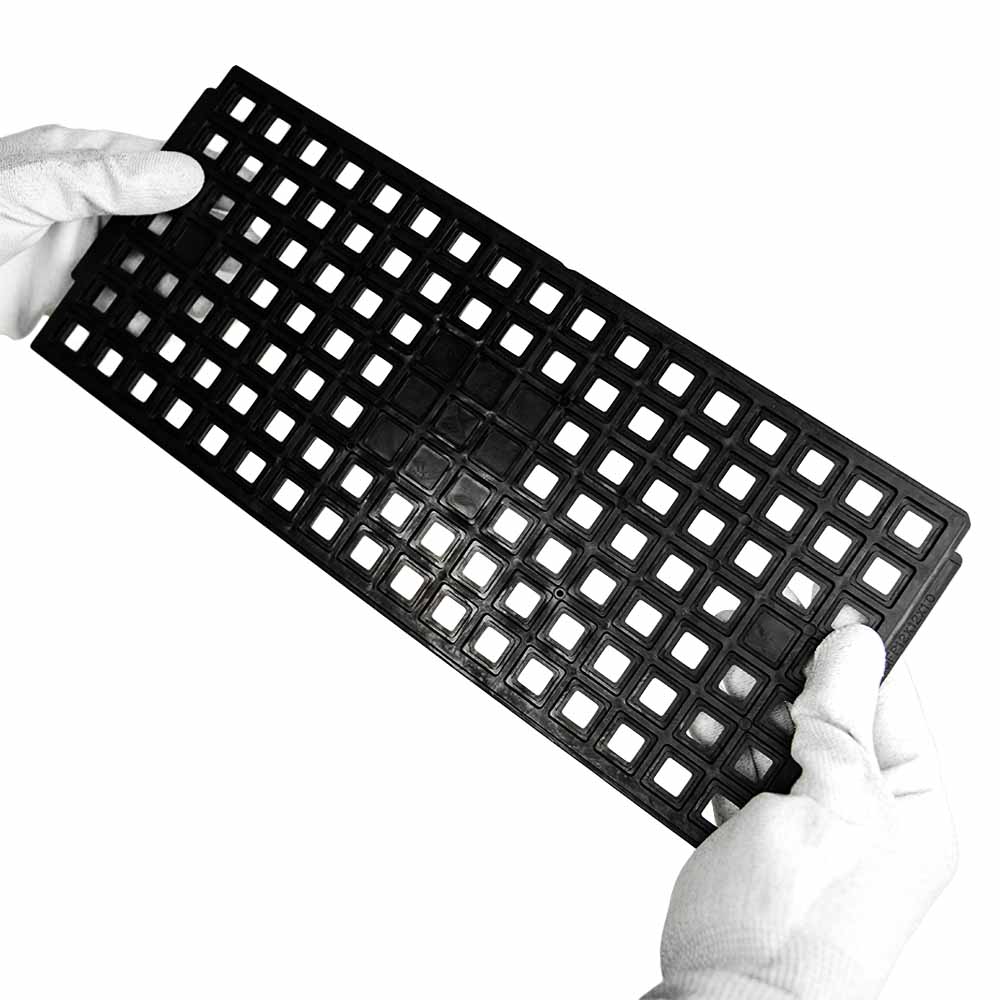

JEDEC Matrix Trays
ESD safe component trays for storage and transport
JEDEC matrix trays are manufactured to meet global JEDEC standards for semiconductor and component packaging. Constructed from heat-resistant, antistatic modified polysulfone, these trays are designed for use in automated pick and place systems, assembly, testing, and secure storage.
All trays share uniform JEDEC “X” and “Y” dimensions of 323mm x 136mm, allowing easy stacking and efficient use of space. The trays withstand high temperatures up to 150°C, with selected models rated up to 180°C, providing long-term stability and reliability for sensitive electronic components. Sold individually.
Complete your packaging solution with JEDEC tray covers, conductive straps, moisture barrier bags, humidity indicator cards, and silica gel desiccants.
Contact us for custom JEDEC tray configurations.
Antistat is a global supplier, looking to order in the US?
| Application |
EPA Use |
|---|---|
| Resistivity |
Dissipative |
| Sterility |
Non-Sterile |
| Brand |
Antistat |
| Material |
Polysulfone (PSU) |
| Cell Type |
BGA ,LQFP ,PBGA ,QFN ,QFP ,TBGA ,TQFP ,TSOP ,TSOP I |
| Colour |
Black |
| Cell Size |
3mm x 3mm x 1.0mm ,4mm x 4mm ,5mm x 5mm x 1.0mm ,7mm x 7mm ,7mm x 7mm x 1.0mm ,7mm x 7mm x 1.4mm ,8mm x 13mm ,8mm x 20mm ,8mm x 8mm x 1.0mm ,8mm x 8mm x 1.5mm ,9mm x 9mm x 1.5mm ,10mm x 10mm ,10mm x 10mm x 1.0mm ,10mm x 10mm x 1.4mm ,11mm x 11mm x 1.5mm ,12mm x 12mm x 1.4mm ,12mm x 12mm x 1.0mm ,12mm x 12mm ,12mm x 20mm x 1.0mm ,13mm x 13mm ,14mm x 14mm x 1.4mm ,14mm x 20mm x 1.4mm ,15mm x 15mm x 1.36mm ,16mm x 16mm x 1.0mm ,20mm x 20mm x 1.4mm ,21mm x 21mm ,24mm x 24mm x 1.4mm ,28mm x 28mm x 1.4mm |
| Tray Size |
320mm x 135mm (12.6in x 5.3in) |
| Sales Unit |
Each |
