Surface Resistance Meter 9V

ESD Surface Resistance Meter

Portable 9V tester for conductive, dissipative, and insulative surfaces

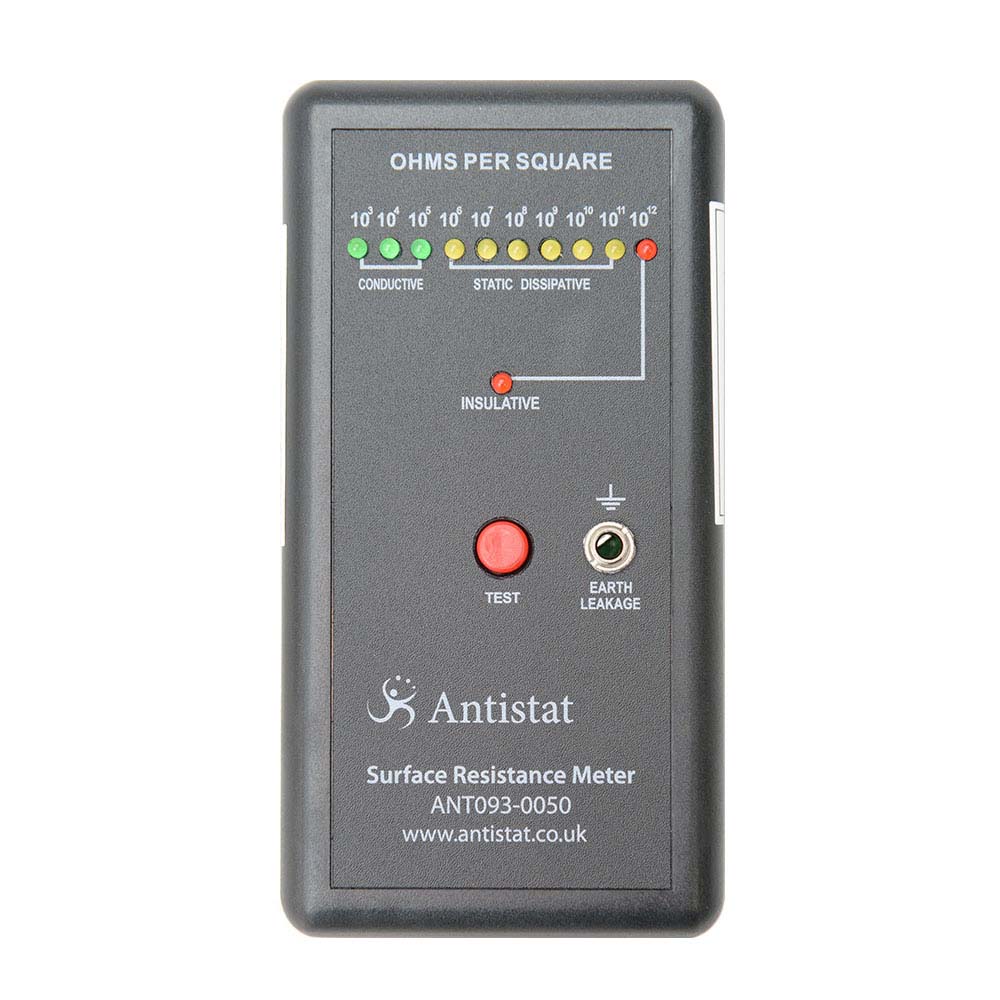

This ESD surface resistance meter is a lightweight, portable 9V device designed for quick and accurate measurements. Easy to use, it delivers reliable readings every time.

To test surface material, simply place the meter on the area and press the test button. For measuring resistivity to ground, insert the ground lead into the earth leakage socket, connect the crocodile clip to the test surface, and press the button.

The unit operates with a nominal 9V test voltage and functions effectively within a temperature range of 5°C to 49°C. Weighing only 170g (6oz), it is compact and user-friendly. Calibration is recommended every two years to maintain accuracy, and calibration services are available on request. (Battery not supplied.)

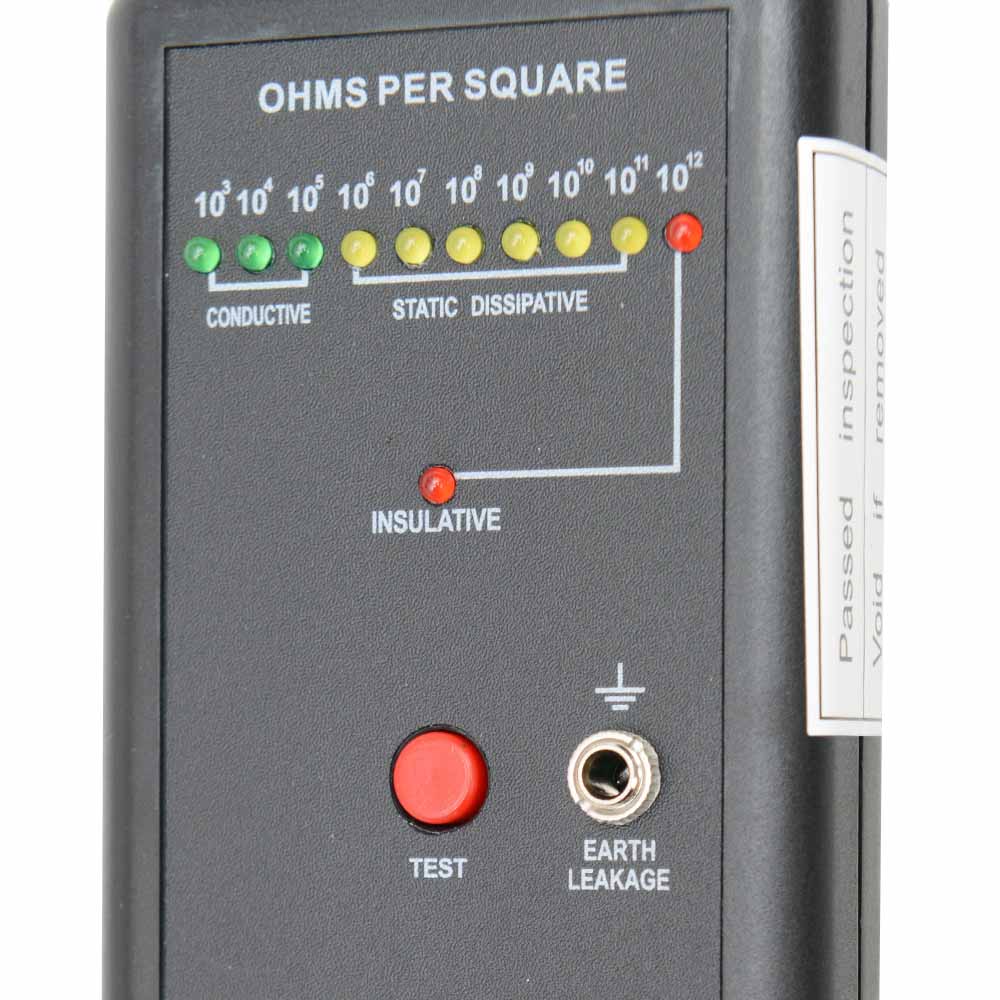

The meter measures conductive, static dissipative, and insulative surfaces, with clear LED indicators:
– Green (10³–10⁵ Ω/sq): conductive
– Yellow (10⁶–10¹¹ Ω/sq): static dissipative
– Red (10¹²+ Ω/sq): insulative

Please note: this item may be subject to lead times.
