Interlocking ESD Floor Tiles – Dovetail Joint

Dovetail Joint Interlocking ESD Floor Tiles

Durable, static-safe flooring for critical environments

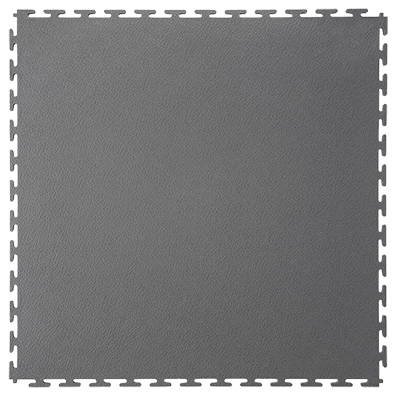

Dovetail joint interlocking ESD floor tiles provide a tough, flexible, and modern flooring solution for static-controlled areas. Designed with a secure interlocking system, they are quick to install and deliver a clean, professional appearance. These tiles are guaranteed to provide consistent ESD performance throughout their lifespan, making them suitable for use as primary flooring.

Each tile measures 500mm x 500mm x 7mm (19.7in x 19.7in x 0.28in) and offers surface resistivity between 2.2 × 10⁴ ohms and 3 × 10⁶ ohms, with ground resistance ranging from 2.9 × 10⁴ ohms to 5.7 × 10⁵ ohms. During walking tests, they generate less than 100 volts, and even in low humidity conditions, static dissipates in just 0.01 seconds.

These ESD tiles are particularly effective in electronics and telecommunications facilities, computer server rooms, laboratories, and production plants such as pharmaceutical, paint, petrochemical, and certain food manufacturing sites where dust explosion risks (e.g., sugar, flour dust) are present.

Interlocking ESD floor tiles are resistant to chemicals, fire, and wear, while also being environmentally friendly. The smooth installation process and long-term durability make them a practical choice for busy, high-risk environments.

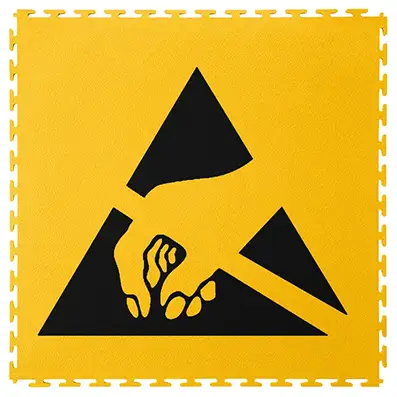

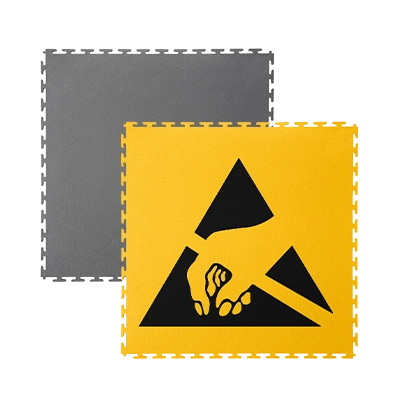

Note: Dark grey tiles are sold in packs of 4, while yellow pictogram tiles, edging strips (500mm x 90mm x 7mm / 19.7in x 3.5in x 0.28in), and corner edging strips (590mm x 90mm x 7mm / 23.2in x 3.5in x 0.28in) are sold individually.

To ensure correct installation and performance, use alongside our ESD floor grounding kit.

For installation guidance, please see our ESD floor tile installation guide.

Browse our full range of ESD flooring.
