Complete ESD Test Station Kit
£149.00
- Quick and simple ‘one touch’ test function
- Tests upper and lower fail, and pass functions
- Low battery indicator for maximum efficiency
ESD Test Station – Footwear & Wrist Strap Tester
Quick and reliable testing before entering ESD protected areas

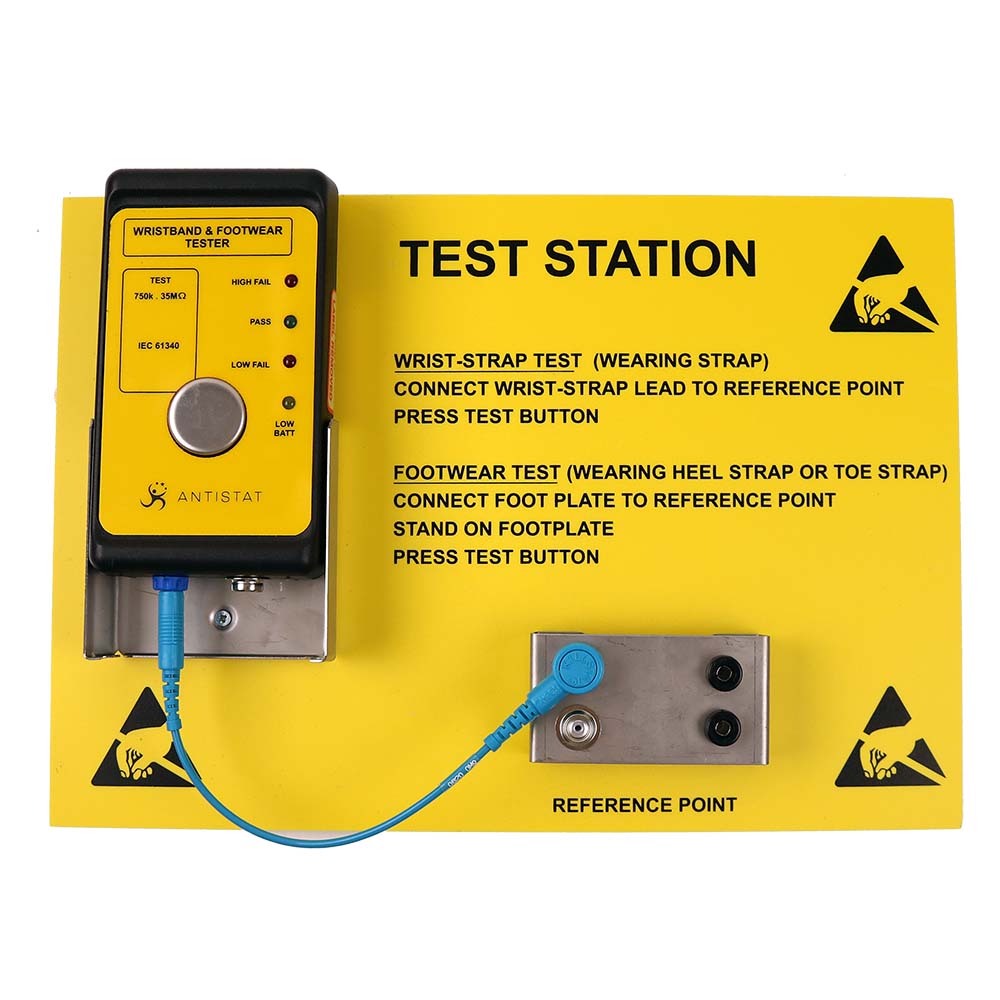

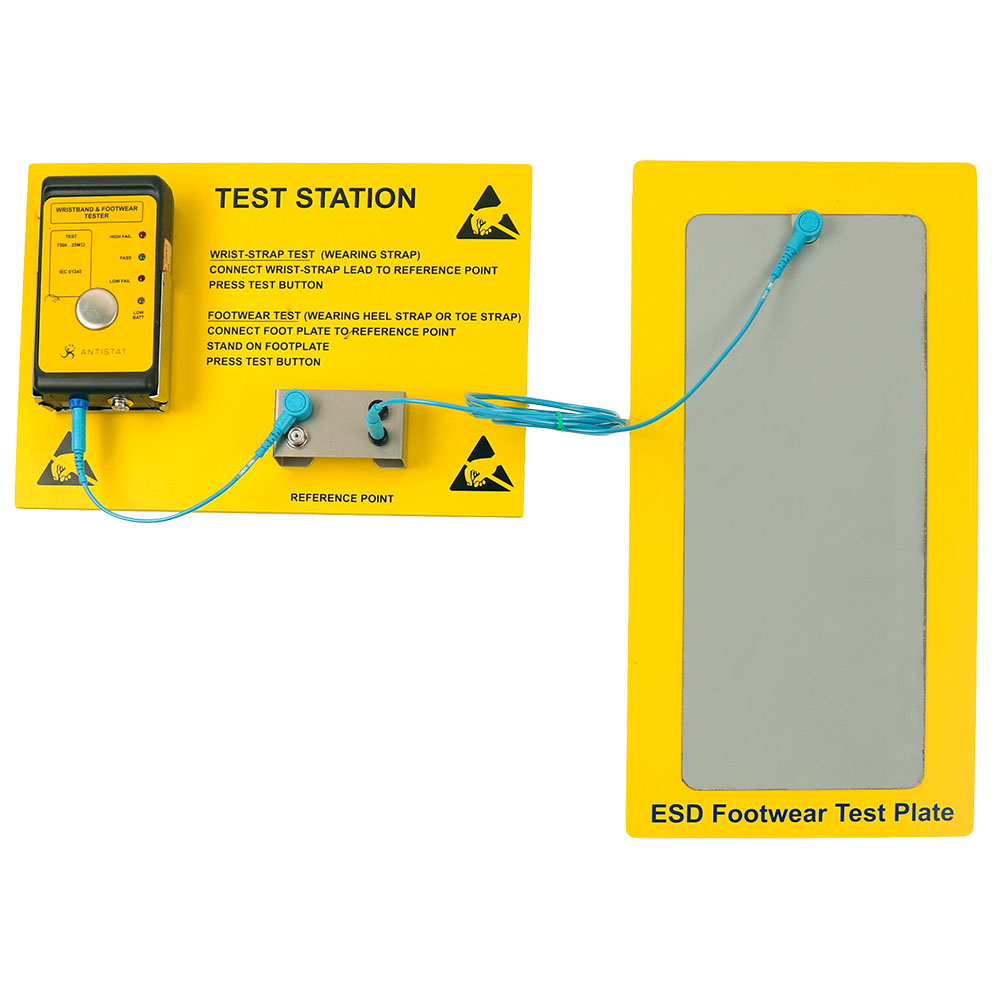

This complete ESD test station kit combines both an ESD wrist strap tester and an ESD footwear tester, providing a simple and efficient way to check compliance before accessing an EPA. The unit measures both high and low pass/fail ranges, with testing achieved through an easy one-touch function.

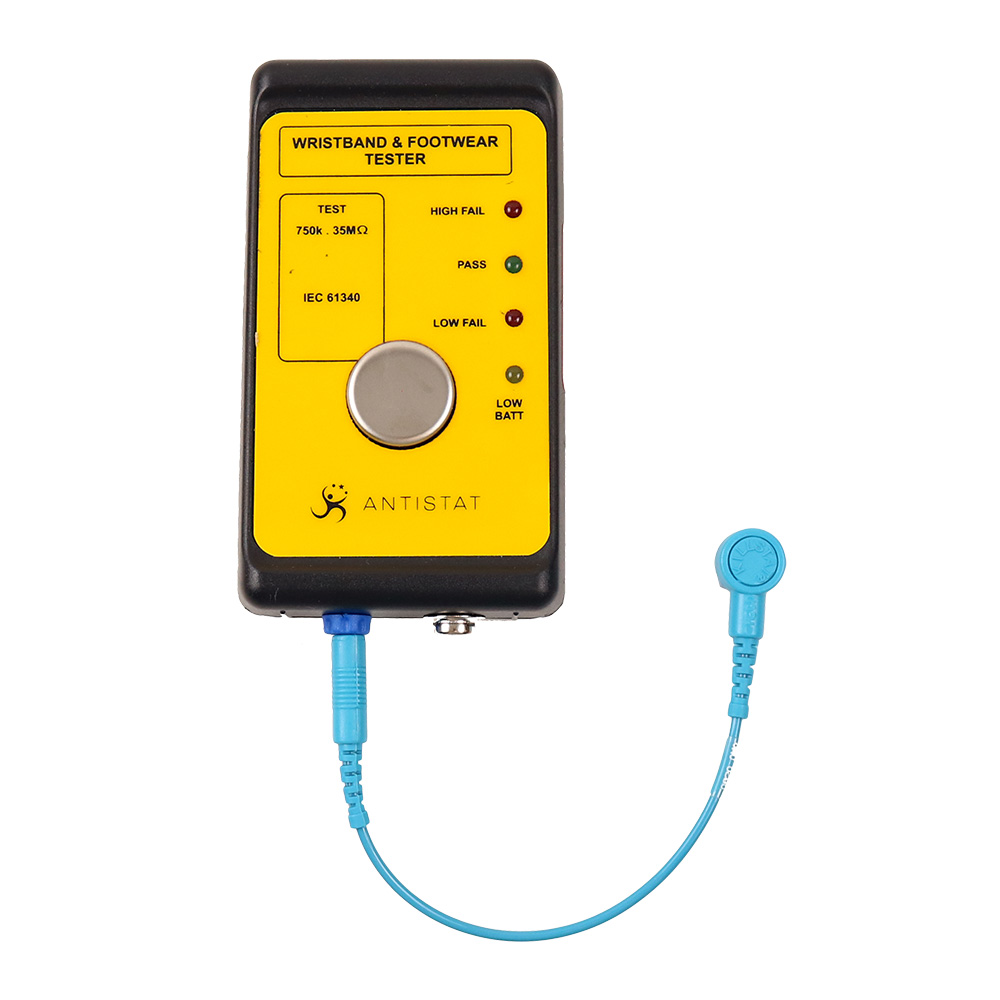

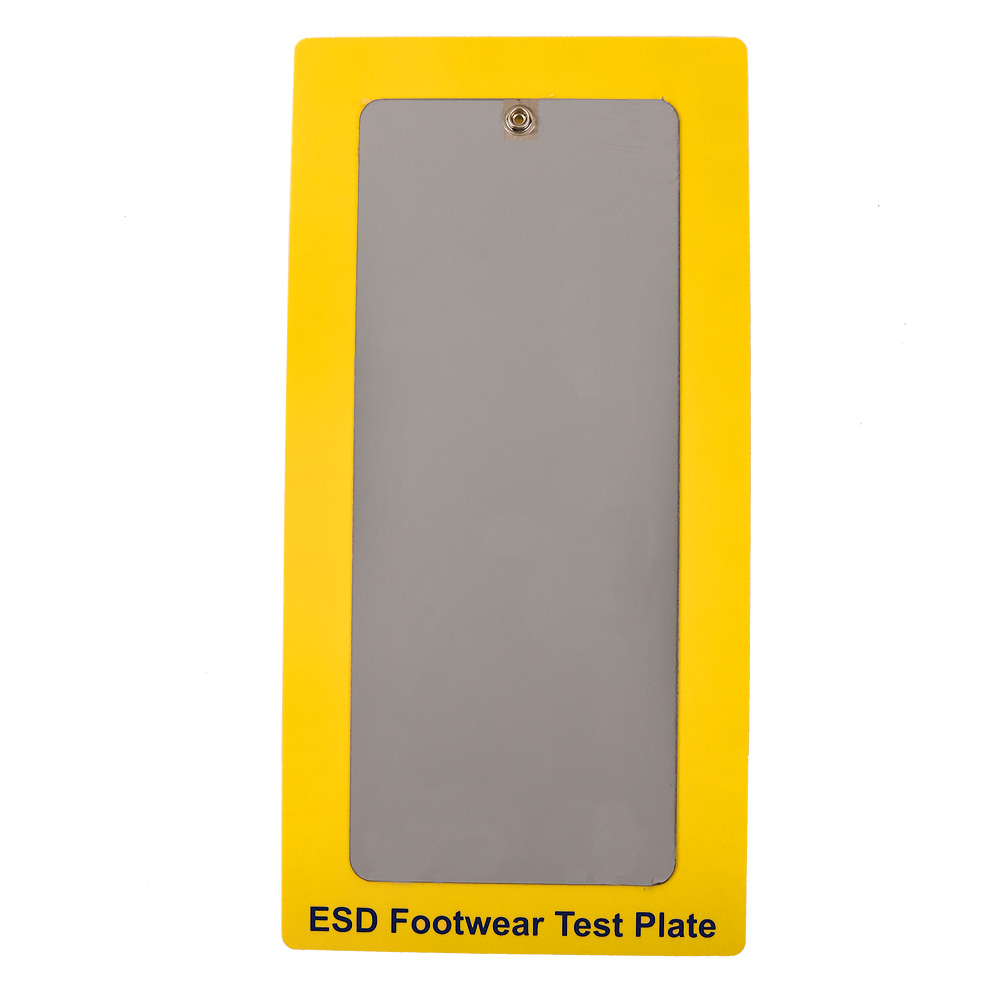

The kit includes an ESD wrist strap tester, wall mount, ESD footwear checker footplate, 6in and 6ft straight leads, crocodile clips, and a 9V square battery. Designed for convenience, it also features a low battery indicator to prevent downtime.
CE approved, the test station operates with a lower limit of 750kΩ ±10% and an upper limit of 35MΩ ±10%. Compact and portable, it measures 129mm x 63mm x 25mm, making it suitable for use in a wide range of ESD-controlled environments.
Browse our full range of ESD test equipment.
Antistat is a global provider of ESD supplies. Looking to order this product in the US?
| Application |
EPA Use |
|---|---|
| Sterility |
Non-Sterile |
| Brand |
Antistat |
| Connection Type |
Crocodile Clip ,4mm Banana Socket ,4mm Banana Plug ,10mm Female Stud ,10mm Male Stud |
| Lead Type |
Straight Earth Lead |
| Voltage |
9V |
| Colour |
Black ,Blue ,Silver ,Yellow |
| Sizes |
Wrist strap Tester: 5.1in x 2.8in x 1in (130mm x 70mm x 25mm) ,Wall Mount: 8.3in x 11.8in (210mm x 300mm) ,Footplate: 15.7in x 7.9in (399mm x 200mm) ,Straight Lead(s): 6ft and 6in ,Square Battery: 9V |
| Sales Unit |
Each |
