13in Component Packaging Reels
From £2.67
- Sold as 4mm, 8mm, 16mm, 28mm, or 44mm reel halves
- Combine to make diameters from 4mm to 88mm
- Sold as reel halves for easy storage and shipping

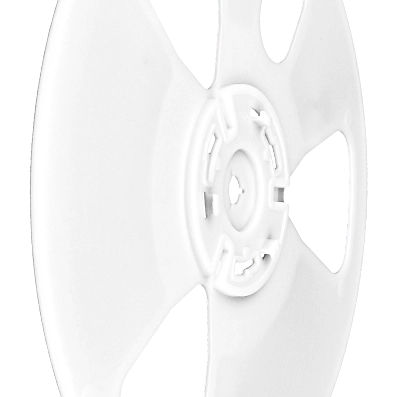

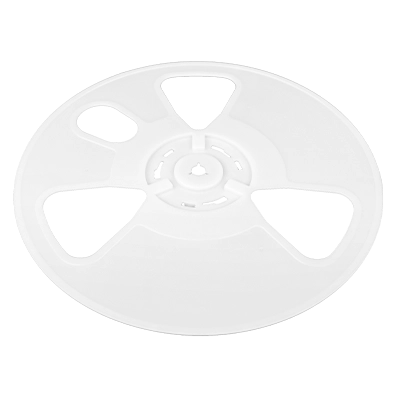

13in Antistatic Component Packaging Reels
Split reels for efficient storage and cost-effective transport
White Antistat 13in (330mm) antistatic high-impact polystyrene (HIPS) reels are designed for safely shipping and storing components packaged in carrier tape.
They accommodate EIA standard carrier tape widths from 4mm to 88mm using interchangeable half-hubs. Each reel features a 330mm diameter, 13mm arbor hole, and 102mm hubs. Assembly is quick and secure with a simple twist – no glue or fasteners required.
Available hub widths of 4mm, 8mm, 16mm, and 28mm allow flexible combinations for tape widths from 4mm to 56mm.
Reels are supplied in halves, reducing shipping costs by up to 70% and saving up to 60% of storage space with their nestable design. With a surface resistivity of 1 x 10⁵ – 10¹¹ ohms in accordance with ANSI/ESD STM11.13-2021, these reels deliver reliable static protection.
Store in the corstat reel storage system, a flexible bench mount solution.
Browse our full range of antistatic packaging reels.
Looking to order this product in the US?
| Application |
EPA Use |
|---|---|
| Resistivity |
Dissipative |
| Sterility |
Non-Sterile |
| Brand |
Antistat |
| Material |
High-Impact Polystyrene (HIPS) |
| Colour |
White |
| Reel Diameter |
13in (330mm) |
| Hub Width |
4mm (0.16in) ,8mm (0.31in) ,16mm (0.63in) ,28mm (1.1in) ,44mm (1.7in) |
| Sales Unit |
Each |
